PT-1033VZX Tensile test machine
產品說明
PT-1033VZ SERVO SYSTEM Tensile (Compress) Strength Tester

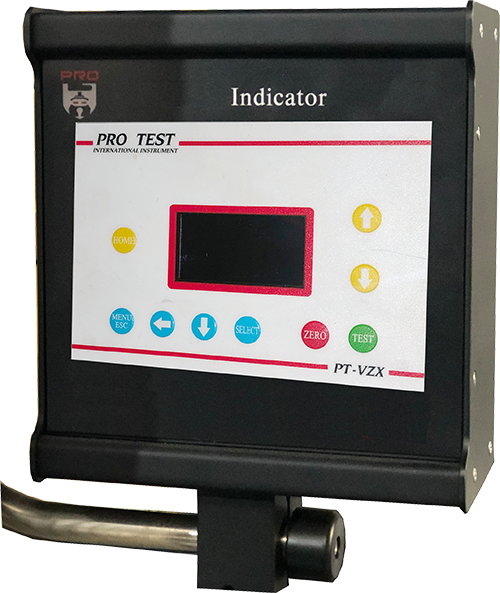

Using PT-VZX Indicator
http://www.qcmachine.com.tw/product_d.php?lang=tw&tb=1&id=1145
Purpose: Suitable for tensile and compression tests with loads below 5,000~20,000kgf, optional replacement fixtures can be used for various tests Or buy computer-connected equipment, which can extend the power of various materials, finished products, and semi-finished products,
Using PT-VZX Indicator
http://www.qcmachine.com.tw/product_d.php?lang=tw&tb=1&id=1145
Purpose: Suitable for tensile and compression tests with loads below 5,000~20,000kgf, optional replacement fixtures can be used for various tests Or buy computer-connected equipment, which can extend the power of various materials, finished products, and semi-finished products,
| MODEL |
PT-1033VZ-5T |
PT-1033V-10T |
PT-1033VZL-10T |
Equipped with function
|
Servo motor system, upper and lower safety limit setting, emergency stop button
|
||
Tensile and compressive capacity
|
5,000kgf | 10,000kgf | 10,000kgf |
Load resolution
|
1/20,000 (option computer system 1/2,000,000) | ||
Force accuracy
|
Within ±0.5%。 | ||
| Test Speed | 0.01 ~500 mm/min (or option),Indicator set, (Computer system is computer set) | ||
| Test Stroke |
1000 mm (Without fixture distance
)。 |
1000 mm (Without fixture distance
)。 |
1300 mm (Without fixture distance
)。 |
Test width
|
400 (OR 500) mm。 | ||
| Motor | AC Servo Motor | ||
Machine weight
|
About 420 kg | About 450 kg | About 500 kg。 |
Machine size
|
86(+13) × 60 × 200 cm W×D×H。 | 86(+13) × 60 × 200 cm W×D×H。 | 86(+13) × 60 × 240 cm W×D×H。 |
Use electricity
|
1P,AC220V , 50~60HZ, 4A。 | 1P,AC220V , 50~60HZ, 8A。 | 1P,AC220V , 50~60HZ, 8A。 |
| OPTION |
Fixtures; protection doors , Computer connection interface and software
|
||
