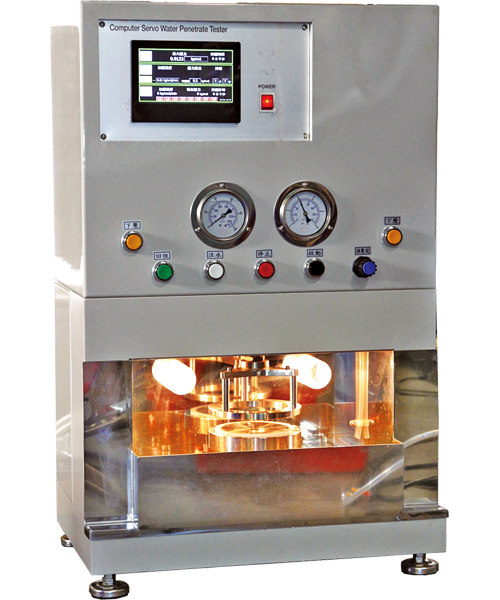

PT-5025A High water resistance testing machine (servo system)

Compliant with specifications: AATCC 127, ISO 811, JIS L 1092

Application: It is controlled by microcomputer and driven by servo motor. The linear pressure gradient is almost perfect, and the pressure control error is kept small.
Features: Increase intake three-point combination, reduce water vapor and increase the service life of air hydraulic cylinder and air valve components
              Increase influent reverse osmosis filtration: increase pump life
              The solenoid valve is replaced with a large-area silencer filter to avoid blockage and cause unsmooth movement
              New Pressure Relief Valve: Avoid abnormal blocking action ... etc.


Measuring range 0.001 ~ 5 kg / cm2 10mm ~ 50,000mmH2O.
Pressing speed 0.01 ~ 1 kg / cm2 per minute, digital type can be set.
Display accuracy within ± 1%
Pressurized power 400w servo motor drive.
Holding pressure test The pressure value can be set and the timing will be started when it reaches.
Holding time 99 minutes 59 seconds, can be set, automatic shutdown.
Two-stage pressurizationAfter the first-stage pressurization speed reaches the set value, it automatically switches to the second-stage pressurization speed.
Clamping type adopts air oil booster actuation.
Pressure plate surface ψ112.8 mm (100cm2).
Clamping force over 1,200 kg
After the test is completed, it can instantly return to standby for the next test.
